Need something exceptional to stand out from the crowd? Something very different to create a powerful signature effect. Lack that missing X factor? Then go to the extreme with the visually sensational TetraX™!

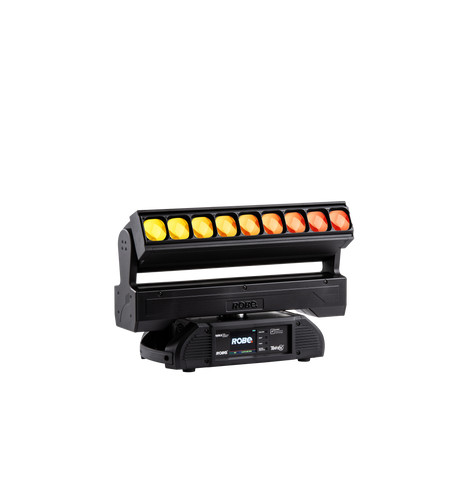

Developed from the immensely successful Tetra1™, the TetraX™ adds dynamic pan movement with extremely high-speed continuous rotation, dramatically increasing sweeping effect possibilities of the fixture.

Generating an ultra-tight 4° beam from each of the 9 evenly spaced pixels, they combine to produce a bright, defined “sheet” of light, as desired by Lighting Designers. The homogenised beams and smooth 11:1 motorised zoom provide ultra-smooth washes out to 45°.

TetraX™ sets itself apart by including three exclusive eye-catching Robe patented MCFE™ – Multi-Coloured Flower Effect – emitting sharp, multi-coloured spikes of light, with variable speed and rotation direction control, to further increase the projection of charismatic in-air animations.

All-inclusive colour and dimming control are available via RGBW and CMY colour mixing modes; variable CCT of 2.700K – 8.000K; tungsten emulation simulating the red shift and thermal delay of tungsten lamps for whites from 2.700K – 4.200K; DataSwatch™ 237 pre-programmed colour library; L3™ Low Light Linearity dimming software for imperceptible fades to black.

An Epass™ Ethernet switch ensures sustained network connectivity. A wide range of protocols (sACN, Art-Net or Kling-Net) allows quick network installation and control from media servers, DMX, or the internal effects engine.

TetraX™ – eXceeding the eXeptional

Light source

9x 40W RGBW LED multichips

Light output

5.300 lm (integrating sphere)

Zoom range

4° - 45°

Effects

3x MCFE™ Multi-coloured Flower Effects (patented), pixel control, continuous pan rotation

Innovations

DataSwatch™ - inbuilt virtual colour library

The DataSwatch™ inbuilt virtual colour library for Robe LED fixtures consists of up to 237 pre-programmed and calibrated colours and tones, allowing for rapid and accurate programming.

MCFE™ - Multi Coloured Flower Effect

The Robe patented MCFE™ – Multi-Coloured Flower Effect – creates sharp, multi-coloured spikes of light, that are fully rotatable in both directions, at variable speeds.

L3™ - Low Light Linearity System

The L3™ Low Light Linearity System produces imperceptible, ultra-smooth fades to black.

REAP™ - Robe Ethernet Access Portal

The Robe Ethernet Access Portal allows to access internal data from a networked fixture, viewed as a web page, addressable via the fixtures network IP.

GDTF – General Device Type Format

The General Device Type Format creates a unified definition for exchange of data for the operation of intelligent luminaries, such as moving lights. The file format is human readable and developed using open source formats.

RLCT™ - Robe lens coating technology

Just like with spectacles, our lens coating technology protects soft plastic lenses against surface scratches, that can even occur during cleaning when scrubbed repeatedly. Anti-static properties prevent dust build-up on the lenses, thus extending the period between maintenance cleaning.

Tungsten Emulation

When selected, the luminaire will mimic the colour temperature of a tungsten lamp as you lower the output to produce that classic warm glow.

QVGA Robe Touch Screen Display System

The QVGA Robe touch screen display gives full access to all fixture setup and diagnostic functions and is very intuitive to navigate.

Product Video

Technical Specification

Expand AllDownload PDFCollapse All

Source

Light source type: 9x 40W RGBW LED multichips

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Optical system

Dynamic Effects and Features

Colour mixing mode RGBW or CMY

Individual control of each RGBW pixel

Variable CCT: 2.700K - 8.000K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4.200K (red shift and thermal delay)

DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K

Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction

3x MCFE™ - Multi-Coloured Flower Effects – creating spectacular multicolour beam effects in the air rotating in both directions at variable speed (Patented)

Motorized zoom

Pre-programmed random strobe & pulse effects

Electronic strobe effect with variable speed up to 20 Hz

High resolution electronic dimming: 0 - 100%

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Control and programming

Setting & Addressing: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 88 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN, Kling-Net

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity

DMX Protocol modes: 6

Control channels: 41, 61, 75, 84, 88, 97

RGBW / CMY: 8 or 16 bit

Zoom: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Movement

Thermal specification

Electrical specification and connections

Mechanical specification

Rigging

Included items

Optional accessories

Legal
