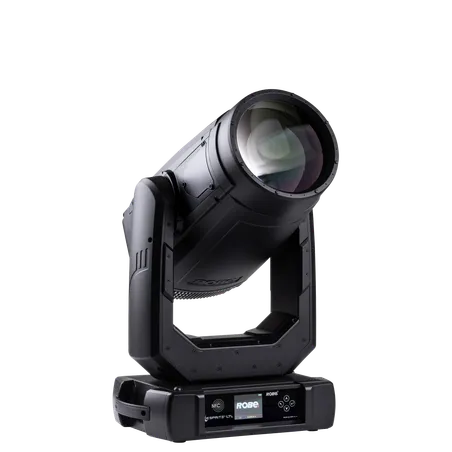

Inspired by the award-winning iFORTE® LTX WB and maintaining the renowned design and durability of the iSERIES, the smaller and lighter iESPRITE® LTL WB WashBeam luminaire delivers a powerful advantage in its class for live concert-touring, theatrical productions, and broadcast designs, indoors or out.

With exceptional form-factor, impressive output, optical precision with an imposing 200mm front lens and rich feature set, this fixture will fit deliver high performance without occupying excessive space or overloading your truss, at just 37 kg.

The iESPRITE® LTL WB is available with a choice of patented, IP65-rated iSE-TE™ 750W White LED TRANSFERABLE ENGINES. Choose between the XP (High Performance) engine, which delivers a 6.700 K colour temperature, a fixture output of 35.000 lm (integrating sphere), for an impressive 250.000 lx at 5 m with a CRI of 70 for maximum brightness; or the HCF (High Colour Fidelity) engine, offering a 6.000 K colour temperature, 22.750 lm output (integrating sphere), for illuminance of 140.000 lx at 5 m with an exceptional CRI of 96 for superior colour rendition.

Engineered for durability, the TRANSFERABLE ENGINE delivers stable output, field exchangeability, and possible future LED upgrade capability. Its advanced, stable thermal management system means we can offer a 50.000-hour L70/B50 rating and a 4-year, 20.000-hour warranty. iESPRITE® LTL WB is designed to endure.

The innovative optical design offers remarkable versatility. The standard Optical Range Mode delivers a zoom range of 3° - 57°, while narrowing the iris allows coverage from 2° - 52°. The Long Throw Mode, using patented xR7™ technology, provides an ultra-tight beam from 0.7 - 2° incredibly without any intensity loss usually found when engaging an iris over long distances.

The iESPRITE® LTX WB’s CMY colour mixing system, combined with dual colour wheels and a variable CTO range of 3.000 to 6.700K, ensures seamless transitions from bold saturates to delicate pastels. ChromaTint™ patented green content control technology allows rapid adjustment for broadcast environments.

The luminaire is packed with effects, including rotating and static gobo wheels, an aluminium animation wheel with variable speed and directional control, and two stackable prisms—a six-facet circular and a six-facet linear. Two MagFrost™ interchangeable frosts, at 1° and 5°, enhance its versatility. Precision framing is achieved with the PLANO4™ FC system, which offers four-plane blade control, full curtain capability, and module rotation up to 120 degrees.

Advanced features like our L3™ Low Light Linearity 18-bit dimming system, Cpulse™ flicker-free management for compatibility with modern camera systems, and Epass™ network connectivity safeguards ensure smooth, reliable operation in any scenario.

The luminaire features camFIT™, meaning it is pre-wired and pre-balanced for the addition of the dedicated IP65-rated RoboSpot™ camera if required. Together with EMS™ (Electronic Motion Stabiliser) technology for instant stop and hysteresis elimination, it’s the perfect medium to long throw RoboSpot™ partner.

Removing the need for pre-use pan and tilt calibration, MAPS™ (motionless Absolute Positioning System) allows fixtures to calibrated without movement. This also removes audience distraction while resetting during a performance.

Robe’s patented RAINS™ protection system actively manages the fixtures internal microclimate to prevent moisture buildup, ensuring reliability in outdoor use. The self-pressure test function verifies seals and locking screws in under three minutes, requiring no special tools for easy maintenance.

To maintain consistent optical performance, the unique parCoat™ lens coating repels water, dirt, dust, haze, and smoke from the front lens while allowing easy cleaning without damage. For extreme cold conditions, patented standby POLAR+ technology keeps sensors and communication channels active and ensures instant operability in temperatures as low as -50 degrees Celsius.

Remote control and monitoring are enabled through REAP™, (Robe Ethernet Access Portal), which provides real-time fixture data and diagnostics. NFC technology allows setup and adjustments directly from your mobile device using the Robe Com app, even when the fixture is unpowered.

For easier handling of larger fixtures, optional clip on/off handles are available.

The iESPRITE® LTX WB combines unmatched power, precision, and durability in a single package, delivering exceptional WashBeam and long-throw follow-spot performance for indoor and outdoor use.

iESPRITE® LTL WB - Robe reliability in all weathers

Light source

TE™ 750W XP White LED Engine (Patented)

Light output

250.000 lx @ 5 m

Zoom range

3° - 57° (standard optical range)

2° - 57° (using optical zoom + iris)

0.7° - 2° (long throw mode)

Effects

CMY colour mixing, Two colour wheels, Framing shutter, Two frosts, Electronic strobe effect, Iris, Motorised zoom and focus, Animation wheel, Static gobo wheel, Rotating gobo wheel, Two Prisms

Innovations

TE™ – Robe’s Transferable LED Engines

The TE™ technology addresses the problem of performance longevity of ageing LEDs by making the exchange of the engine a simple procedure that can be carried out in just a few minutes. But transferable means so much more than replaceable! Different sources can be fitted to one fixture depending on task. Every TE™ engine has its own, unique memory with all engine data of its usage.

XR7™

Manufacturing high-output fixtures is challenging, but harnessing LED power to project over even greater distances is exceptionally difficult.

parCOAT™

To maintain consistently high lumen output, even with the rigours of outdoor performance, water, dirt, dust, haze, and smoke are repelled from the front lens with our unique parCoat™ hydrophobic, oleophobic resistant coating.

Robe NFC controller and app

The Robe COM application is an app based on NFC (Near Field Communication). It can be used to access to fixture’s settings of our NFC-based navigation display systems as well as reading out data of our TE™ Transferable Engines.

POLAR+™

Outdoor fixtures need to operate in extreme cold. Therefore, Robe iSeries™ fixtures contain an innovative POLAR+™ technology - a special standby mode with low power consumption, in which the fixture's sensors and communications channels continue to function.

L3™ – Low Light Linearity System

The L3™ Low Light Linearity System produces imperceptible, ultra-smooth fades to black.

REAP™ – Robe Ethernet Access Portal

The Robe Ethernet Access Portal allows to access internal data from a networked fixture, viewed as a web page, addressable via the fixtures network IP.

Cpulse™ – Pulse Width Modulation Control

Cpulse™ is a PWM (Pulse Width Modulation) control system for luminaires that allows you to select and fine-tune the LED driving frequency, from either the fixture's onboard display or remotely via DMX. By frequency manipulation in a range from 800 Hz to 25 kH, you ensure no flicker will be visible on any camera system including the latest HD & UHD models, ready for 8K and 16K. This means our fixtures can be used with all the latest cameras types for TV, video and film applications.

GDTF – General Device Type Format

The General Device Type Format creates a unified definition for exchange of data for the operation of intelligent luminaries, such as moving lights. The file format is human readable and developed using open source formats.

MAPS™ – Motionless Absolute Positioning System

The innovative and exceptionally accurate Robe patented MAPS™ system provides stationary reset without calibration movement, as sensors calculate their absolute positions. This allows discreet resetting of fixtures during a performance and power cycling of luminaires within confined spaces.

EMS™ – Electronic Motion Stabiliser

The Robe EMS™ (Electronic Motion Stabiliser) system is a technology for precise Pan and Tilt movements, which reduces vibrations from audio outputs, truss movement and sprung or suspended floors.

airLOC™

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements in the luminaire.

Epass™

Robe lighting’s Epass™ provides Ethernet in/out connections with a pass-through switch that sustains Ethernet integrity when the fixture has no power to automatically maintain network connectivity.

MagFrost™

There is no need to be stuck with frosts supplied with the fixture! Robe’s MagFrost™ magnetic paddle system provides you with quickly exchangeable frosts, enabling you to select those most suitable for your production. 0.5°, 1°, 3.5°, 5°, 10°, 20° and 30° frosts are available.

Plano4™ Framing shutters

Robe's patented Plano4™ 4-blade framing shutter module offers unparalleled beam control with individual movement and rotation control for each blade. The Plano4™ FC module features full curtain movement, allowing each blade to move entirely across the light path for full-wipe capability.

CamFIT™

Luminaires are finely balanced instruments. Any alteration to their balance or weight makes them susceptible to damage.

RAINS™ – Robe Automatic Ingress Protection System

The highly advanced patented RAINS™ (Robe Automatic Ingress Protection System) technology not only prevents ingress. It actively manages a fixture's internal microclimate removing internal moisture build-up caused by constant heating and cooling to provide maximum protection for electronics, revolutionising how outdoor fixtures are managed and protected.

Technical Specification

Expand AllDownload PDFCollapse All

Source

Light source type: TE™ 750W XP White LED Engine (Patented)

XP - Xtra Performance Engine for maximum light output and optimal colour characteristics
LED Engine output: 57.000 lm
Fixture total lumen output:
- 35.000 lm (integrating sphere)
- 27.500 lm (goniophotometer)
Colour temperature output: 6.700 K
CRI: 70, remotely selectable filters for CRI 80 and CRI 90
Illuminance: 250.000 lx @ 5 m

Light source type: TE™ 750W HCF White LED Engine (Patented)

HCF - High Colour Fidelity Engine for the best light quality and colour rendition
LED Engine output: 37.000 lm
Fixture total lumen output:
- 22.750 lm (integrating sphere)
- 17.900 lm (goniophotometer)
Colour temperature output: 6.000K
CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
Illuminance: 140.000 lx @ 5 m

LED life expectancy: min. 50.000 hours

Colour temperature: 6.700K

Typical lumen maintenance: L70/B50 @ 50.000 hours

Light source warranty: 4 years or 20.000 hours

Optical system

Dynamic Effects and Features

Cyan: 0 - 100%

Magenta: 0 - 100%

Yellow: 0 - 100%

Variable CTO: 3.000K - 6.700K

Colour Wheel 1: 5 fixed dichroic colours + white

Colour Wheel 2: 5 fixed dichroic colours + white

ChromaTint™ - Patented plus / minus green correction function

Full curtain framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete framing system +-60°

Static gobo wheel: 9 static and replaceable gobos + open

Rotating gobo wheel: 7 rotating, indexable and replaceable

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed

Prism:

Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both specifically selected for theatre and TV use

Motorised zoom and focus

Electronic strobe effect with variable speed up to 20 Hz

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.

Extremely quiet operation suitable for all types of production in Theatre and TV

POLAR+™ for power saving and instant operation in extremely cold weather conditions

xR7™ eXtreme Reach Follow Spot technology enables you to achieve unprecedented light levels, even the narrowest beam angle of 0.7 degrees

CamFit™ Prewired for later camera installation

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller

Protocols: USITT DMX-512, RDM,ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity

RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance

DMX Protocol modes: 1

Control channels: 53

Pan & Tilt resolution: 16 bit

CMY & CTO: 8 bit

+ - Green correction: 8 bit

Colour wheel positioning: 8 or 16 bit

Static gobo wheel positioning: 8 or 16 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Animation wheel: 8 bit

Animation wheel rotation: 8 bit

Prism indexing & rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 16 bit (internal 18 bit)

Movement

Static gobos

Rotating gobos

Effect wheel

Framing shutters system

Thermal specification

Electrical specification and connections

Approvals

Mechanical specification

Rigging

Included items

Optional accessories

Legal
